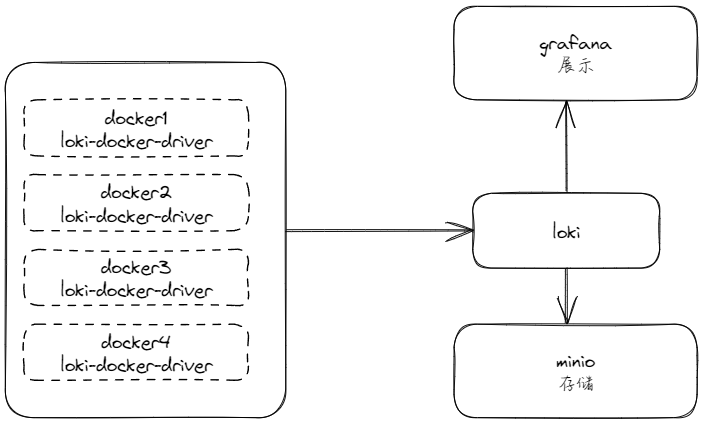

架构图

本地安装loki

# 下载loki二进制文件
cd /usr/local/src/ && wget https://github.com/grafana/loki/releases/download/v2.9.1/loki-linux-amd64.zip

# 解压
tar xvzf loki-linux-amd64.zip

# 授权
chmod +x loki-linux-amd64
mv loki-linux-amd64 /usr/bin/loki

# 编写loki service脚本
vim /etc/systemd/system/loki.service
[Unit]
Description=Loki service
After=network.target

[Service]
Type=simple
ExecStart=/usr/bin/loki -config.file /etc/loki/config.yml
# Give a reasonable amount of time for the server to start up/shut down
TimeoutSec = 120
Restart = on-failure
RestartSec = 2

[Install]
WantedBy=multi-user.target


# 创建loki配置文件
mkdir /etc/loki
vim /etc/loki/config.yml

auth_enabled: false

server:
  http_listen_port: 3100
  grpc_listen_port: 9096

common:
  instance_addr: 172.21.61.21
  path_prefix: /tmp/loki
  #storage:
  #  filesystem:
  #    chunks_directory: /tmp/loki/chunks
  #    rules_directory: /tmp/loki/rules
  replication_factor: 1
  ring:
    kvstore:
      store: inmemory

query_range:
  results_cache:
    cache:
      embedded_cache:
        enabled: true
        max_size_mb: 100

schema_config:
  configs:
    - from: 2020-10-24
      store: boltdb-shipper
      object_store: aws
      schema: v11
      index:
        prefix: index_
        period: 24h
storage_config:
  # 将chunk文件存储于minio集群的loki桶内，chunk文件的生命周期由桶进行管理

  aws:
    # Note: use a fully qualified domain name, like localhost.
    # full example: http://loki:supersecret@localhost.:9000
    s3: http://loki:1ZEPLaztqSMcCSICXO4f@172.21.61.5:19000/loki
    s3forcepathstyle: true
  boltdb_shipper:
    active_index_directory: /loki/boltdb-shipper-active
    cache_location: /loki/boltdb-shipper-cache
    cache_ttl: 24h         # Can be increased for faster performance over longer query periods, uses more disk space
    shared_store: aws
ruler:
  alertmanager_url: http://172.21.61.24:9093

# By default, Loki will send anonymous, but uniquely-identifiable usage and configuration
# analytics to Grafana Labs. These statistics are sent to https://stats.grafana.org/
#
# Statistics help us better understand how Loki is used, and they show us performance
# levels for most users. This helps us prioritize features and documentation.
# For more information on what's sent, look at
# https://github.com/grafana/loki/blob/main/pkg/usagestats/stats.go
# Refer to the buildReport method to see what goes into a report.
#
# If you would like to disable reporting, uncomment the following lines:
#analytics:
#  reporting_enabled: false


# 存储桶的权限配置如下：
{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "LokiStorage",
            "Effect": "Allow",
            "Principal": {
                "AWS": [
                    "arn:aws:iam::<account_ID>"
                ]
            },
            "Action": [
                "s3:ListBucket",
                "s3:PutObject",
                "s3:GetObject",
                "s3:DeleteObject"
            ],
            "Resource": [
                "arn:aws:s3:::<bucket_name>",
                "arn:aws:s3:::<bucket_name>/*"
            ]
        }
    ]
}

# 启动服务

systemctl daemon-reload && systemctl enable --now loki

此时可以通过lokicli进行访问测试：
文档参考地址：https://grafana.com/docs/loki/latest/query/logcli/

通过grafana连接loki，需要注意grafana的版本，使用2.9.1的loki版本时，通过grafana 6、grafana 7访问连接loki，均出现可以连接，但没有找到标签的报错。通过grafana 9及其以上版本，连接成功

收集docker日志

可以通过promtail进行日志收集，但经过测试，对于docker服务，日志收集效果很差且不便管理，所以官方推荐通过 docker的插件：loki-docker-driver​来进行日志的采集及推送：

安装docker插件

在线安装

docker plugin install grafana/loki-docker-driver:main --alias loki --grant-all-permissions

离线安装

docker plugin不支持离线安装，可以通过在线安装的方式先下载安装，再将插件目录拷贝至需要离线安装的机器。具体步骤：

1. 在线安装,默认docker的插件存储目录为：/var/lib/docker/plugins/​
2. 打包文件，cd /var/lib/docker/plugins/ && tar czvf loki-docker-driver.tar.gz xxxxxx​
3. 拷贝至离线环境，解压到/var/run/docker/plugins​目录下

测试过在docker 23.x版本在线安装，20.x版本离线安装，插件可用，但以免意外，尽可能保持版本一致。

配置docker

修改docker配置文件：/etc/docker/daemon.json ,添加修改如下内容：

{
  "debug": true,
  "log-driver": "loki",
  "log-opts": {
      "loki-url": "http://172.21.61.21:3100/loki/api/v1/push",
      "max-size": "50m",
      "max-file": "10"
  },
  "insecure-registries":
        ["......"]
}

关于loki-docker-driver的具体配置说明，请看官方文档：https://grafana.com/docs/loki/latest/send-data/docker-driver/configuration/

重启docker

​systemctl restart docker​

本次安装在swarm环境进行的，重启docker前需要驱逐对应node上面的容器。
命令如下：

docker node update --availability drain ${nodeId}

重启后需要恢复节点状态：

docker node update --availability active ${nodeId}

日志清理

可以通过loki提供的压缩器进行日志的留存时间设置，在loki配置文件中定义：

compactor:
  retention_enabled: true
  compaction_interval: 30m
  retention_delete_delay: 5m
  retention_delete_worker_count: 100

limits_config:
  retention_period: 180d	# 保留180天

访问

此时可以在grafana上查看日志信息。

‍
